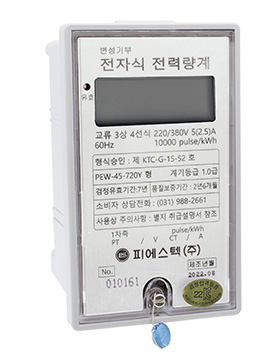

Three Phase Transformer Watt-hour Meter
Panel-embedded Type
Dimensions
| A | B | C | D | E | F | |
|---|---|---|---|---|---|---|
| SIZE (mm) | 75 | 125 | 76 | 66 | 67 | 117 |
Parameters
| Model | Phase·Wire | V | A | Hz | Pulse·kWh |
|---|---|---|---|---|---|
| PEW - 42 - 720Y | 3P4W | 110/190 | 5 (2.5) | 60 | 20,000 |
| PEW - 45 - 720Y | 220/380 | 10,000 | |||
| PEW - 52 - 720Y | 3P3W | 110 | 20,000 | ||
| PEW - 55 - 720Y | 220 | 10,000 |
Pulse·kWh
Dimensions
| A | B | C | D | |
|---|---|---|---|---|
| SIZE (mm) | 129 | 126 | 54 | 90.2 |
Parameters
| Model | Phase·Wire | V | A | Hz | Pulse·kWh |
|---|---|---|---|---|---|
| PEW - 45 - 720BYK | 3P4W | 220/380 | 5 (2.5) | 60 | 1,000 |
| PEW - 55 - 720BY | 3P3W | 220 |
Features
Communication methods such as TTL, RS-485, or pulse output, depending on the type of the product
Bi-directional metering (kWh transmitted/received)
Displays up to 6 types of energy data, including electricity, gas, water, hot water and heat
Provides metering data including real-time active/reactive current, voltage, current, frequency and power factor
Provides information on under/over voltage, reverse current, power factor, etc.
KS Certified Products: Single Phase Top/Bottom & Left/Right Watt-hour Meter, Three Phase Rotation Watt-hour Meter
