Single-Phase Vertical·Horizontal Connection Type (Standard)

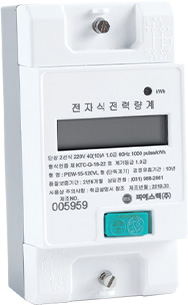

Vertical Connection


Dimensions
A | B | C | D | |
---|---|---|---|---|
SIZE (mm) | 64 | 123 | 52 | 87.8 |
Parameters
Model | Phase·Wire | V | A | Hz | Pulse·kWh |
---|---|---|---|---|---|
PEW - 15 - 120VL | 1P2W | 220 | 40 (10) | 60 | 1,000 |

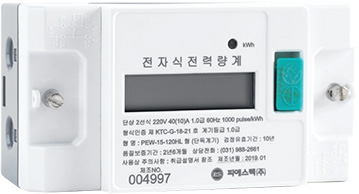

Horizontal Connection


Dimensions
A | B | C | D | |
---|---|---|---|---|
SIZE (mm) | 123 | 64 | 52 | 87.8 |
Parameters
Model | Phase·Wire | V | A | Hz | Pulse·kWh |
---|---|---|---|---|---|
PEW - 15 - 120HL | 1P2W | 220 | 40 (10) | 60 | 1,000 |
