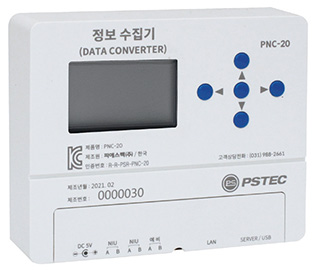

Converter
Dimensions
| A | B | C | D | |
|---|---|---|---|---|
| SIZE (mm) | 136 | 112 | 36 | 93 |
Converter Specifications
| Items | Specifications and Standards |
|---|---|
| Model Name | PNC -20 |
| Rated Current | DC 5V (Adaptor) |
| Power Consumption | 2.5W max |
| Communication Range | Within 1km of NIU |
| Communication Line | Single Twisted Pair |
| Communication Speed | 1200 ~ 115,200bps |
| Certification | KC(Electromagnetic Compatibility for Broadcasting and Communication Equipment) |
| Operating Conditions | -20 ~ 60 |
| Warranty Period | 2 years |
