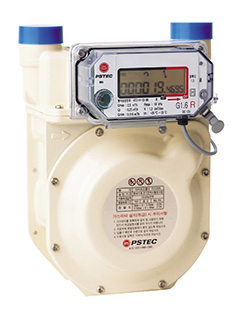

Digital Gas Meter
Dimensions
| Parameters | Unit | Model | |||
|---|---|---|---|---|---|
| G1.6 | G2.5 | G4.0 | |||
| External Dimensions | Height (H) | mm | 217.9 | 232.8 | |
| Width (W) | 164.0 | ||||
| Central Distance(C) | 130.0 | ||||
| Depth1 (D1) | 52.4 | 56.5 | |||
| Depth2 (D2) | 75.5 | 77.5 | |||
| Weight | kg | 1.7 | 1.95 | ||
| Tolerance | Qmin≤Q＜Qt | % | ±3.0 | ||
| Qt≤Q＜Qmax | ±1.5 | ||||
| Operating Temperature Range | ˚C | -25 ~ +55 | |||
| Inlet/Outlet Connector Specifications | M34 x 1.5p | ||||
| Connection Pipe Thread | 20mm (PT 3/4”) | ||||
Specifications※ for LNG metering
| Parameters | Unit | Model | |||
|---|---|---|---|---|---|
| G1.6 | G2.5 | G4.0 | |||
| Maximum Flow Rate | m³/h | 2.5 | 4.0 | 6.0 | |
| Minimum Flow Rate | 0.016 | 0.025 | 0.040 | ||
| Cyclic Volume | L/rev | 1.0 | 1.3 | ||
| Operating Pressure | kPa | 10 | 50 | ||
| Maximum Display Value | m³ | 999,999 | |||
| Minimum Display Value | L | 0.2 | |||
Features
Explosion-proof structure, featuring isolated metering chambers from electric circuits to ensure safety
Guarantees consistency between displayed and communicated readings
Features DPLC (DC12V) communication for remote meter reading and power
LNG metering
