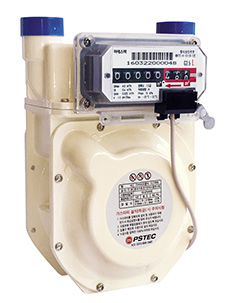

Pulse Gas Meter
Dimensions
| Parameters | Unit | Model | |||
|---|---|---|---|---|---|
| G1.6 | G2.5 | G4.0 | |||
| External Dimensions | Height (H) | mm | 217.9 | 232.8 | |
| Width (W) | 164.0 | ||||
| Central Distance (C) | 130.0 | ||||
| Depth1 (D1) | 52.4 | 56.5 | |||
| Depth2 (D2) | 75.5 | 77.5 | |||
| Weight | kg | 1.7 | 1.95 | ||
| Tolerance | Qmin≤Q＜Qt | % | ±3.0 | ||
| Qt≤Q＜Qmax | ±1.5 | ||||
| Operating Temperature Range | ˚C | -25 ~ +55 | |||
| Inlet/Outlet Connector Specifications | M34 x 1.5p | ||||
| Connection Pipe Thread | 20mm (PT 3/4”) | ||||
Specifications※ for LNG, LPG metering
| Parameters | Unit | Model | |||
|---|---|---|---|---|---|
| G1.6 | G2.5 | G4.0 | |||
| Maximum Flow Rate | m³/h | 2.5 | 4.0 | 6.0 | |
| Minimum Flow Rate | 0.016 | 0.025 | 0.040 | ||
| Cyclic Volume | L/rev | 1.0 | 1.3 | ||
| Operating Pressure | kPa | 1.0 | 50 | ||
| Maximum Display Value | m³ | 999,999 | |||
| Minimum Display Value | L | 0.2 | |||
