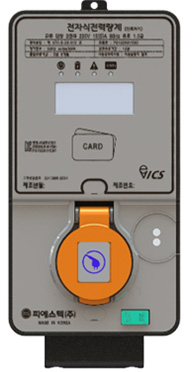

Metered Outlet (3kW)
Main Specifications
2.25-inch MONO LCD Display
Precision Class 1.0
User Recognition & Payment System (RF Card)
Full Charge in 8-10 hours (for 24kWh battery capacity)
Communication support for integration with charger operation center
TCP/IP: Wired LAN, Wireless (2.4GHz WiFi, optional)
Specifications
| Parameters | Specs | |
|---|---|---|
| General | Size | W114 * D60 * H215 |
| Screen | 2.25 MONO LCD display | |
| Electrical Features | Input | 1Ø2Wire, AC 220V(60Hz) |
| Output | AC 220V(60Hz) Max.15A(3.3kW) | |
| Voltage Precision | ±1%(Full Scale) | |
| Current Precision | ±1%(Full Scale) | |
| Environmental Resistance | Operating Temperature | -25℃ ~ 40℃ |
| Operating Humidity | ＜RH95% | |
| IP Rating | IP51 | |
| Communication | Wired Communication | TCP/IP: Wired LAN, Wireless(2.4GHz WiFi, optional) |
| Safety Measures | Overvoltage | Output Cutoff |
| Overcurrent | Output Cutoff | |
| Short Circuit | Output Cutoff | |
