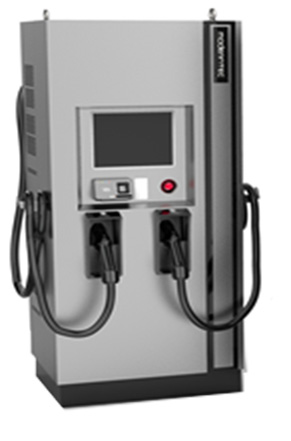

DC Combo 1 Fast Charger (100-200kW)
Main Specifications
Full Charge in 30-40 minutes (for 24kWh battery capacity)
12.1-inch LCD display
User Recognition & Payment System (RF Card)
Communication support for integration with charger operation center
Connector TypeDC Combo1 supported
-
COMBO TYPE 1BMW·GM·Hyundai·KIA
-
CHAdeMOTesla CHAdeMO adapter used
Specifications
| Parameters | Specs | |
|---|---|---|
| General | Size | W720*D600*H1710(1,800H including roof) |
| Screen | 12.1”Touch Screen | |
| Electrical Features | Input | 3Ø4Wire, AC 380V(60Hz) |
| Output (COMBO 1) | DC150 ~ 1000V Max. 1000V, 200A, 100kW | |
| Simultaneous charging, 2 Channels, 50kW per Channel | ||
| Voltage Precision | ±1%(Full Scale) | |
| Current Precision | ±1%(Full Scale) | |
| Insulation Resistance | 5MΩ@500VDC | |
| Environmental Resistance | Operating Temperature | -20℃ ~ 40℃ |
| Operating Humidity | ＜RH95% | |
| IP Rating | 44 | |
| Safety Measures | Overvoltage | Output Cutoff |
| Overcurrent | Output Cutoff | |
| Overcurrent | Output Cutoff | |
